Case Study
Dicing Blades
2022-10-05

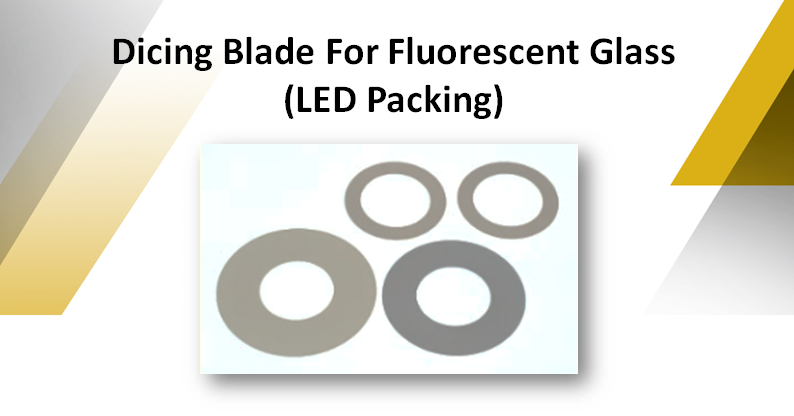

Dicing Blade For Fluorescent Glass(LED Packing)

Feature

  1. With an emphasis on cutting performance, smooth surface on the edge.
  2. Superior wear resistance, reduce the cost and time.
  3. Achieves high productivity and superb dicing results.

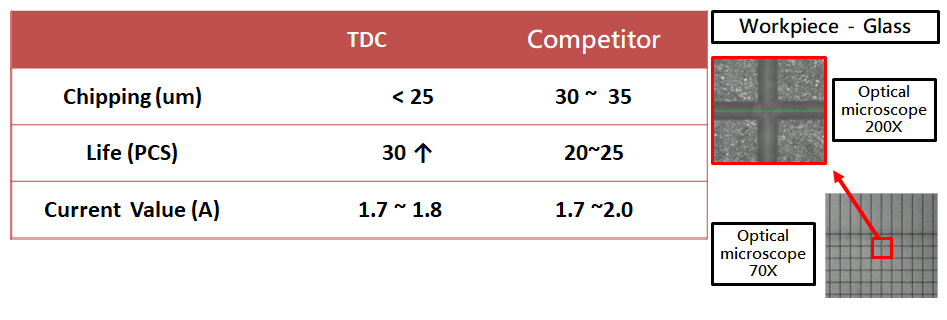

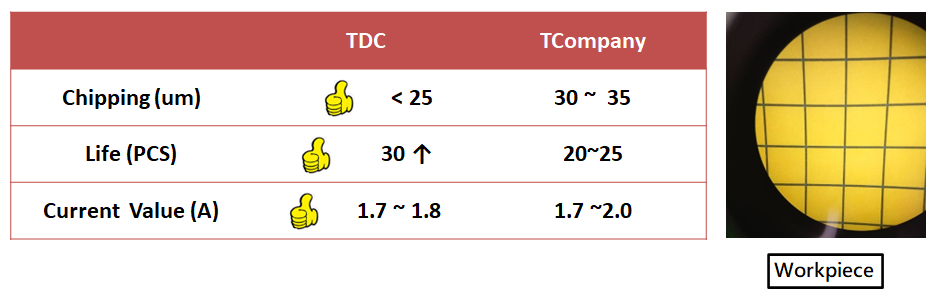

Case Study
SpecificationSD1000L25MST (Metal Bond)
Size55D-0.1T-40H
MaterialPolycarbonate(PC) + Quartz Glass
EquipmentDisco
Speed20,000  rpm
Feed Rate5  mm/s

•  Other sizes available upon request.
